Description
QZ80 features

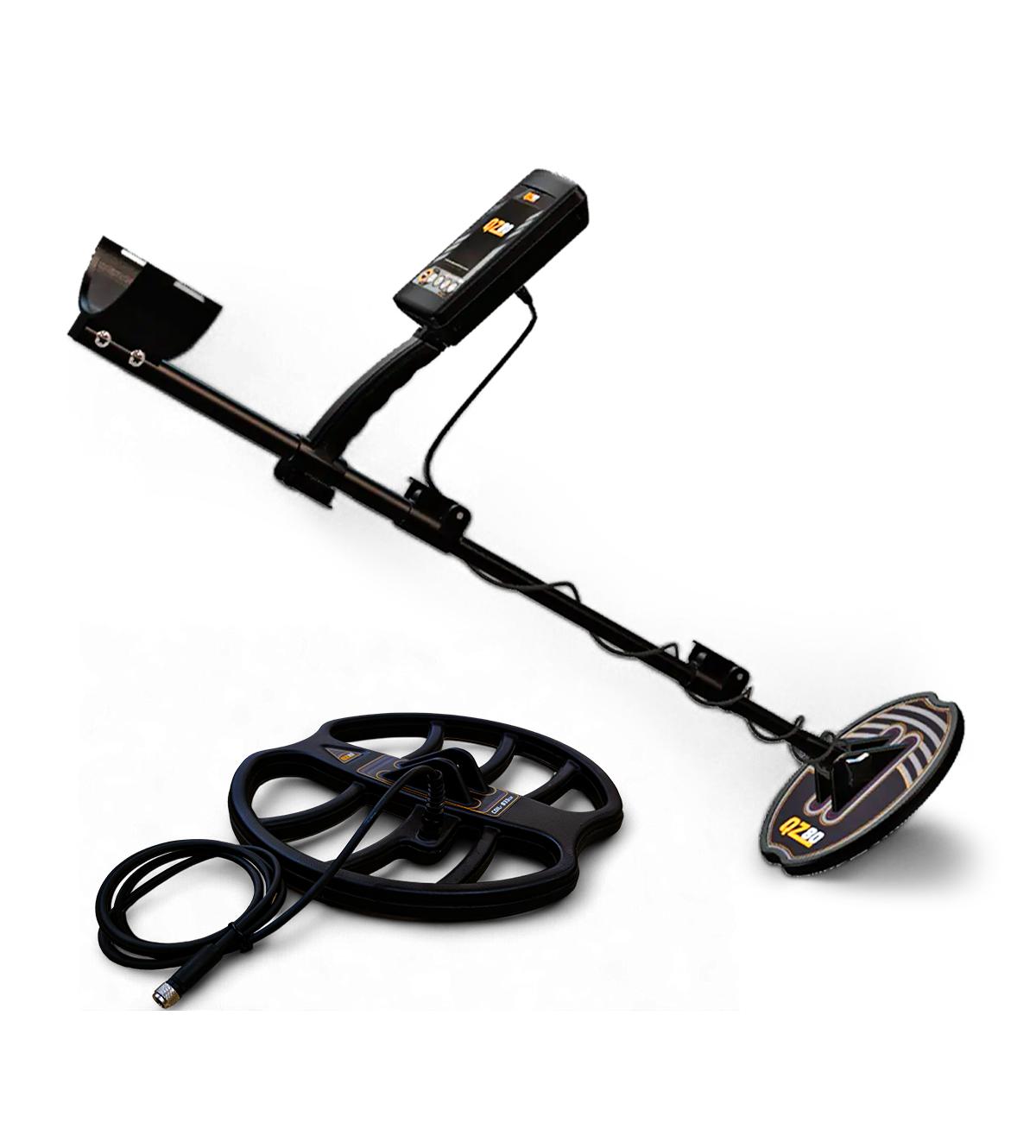

• The advanced metal detector QZ80, produced by VÖGEL research and development center, the Centre for Advanced Studies and Research affiliated to the MWF Group in Germany, This device is the latest advanced scientific study produced to search for metal and gold underground.
• The QZ 80 device has unique search characteristics that save the prospectors a lot of fatigue and effort and reach their goals in the fastest time and at the lowest cost.
• The device contains accurate analysis algorithms that give unprecedented results and great capabilities that enable you to complete the exploration operations with pleasure and great success.
• Apart from similar devices that operate in the same way, this device is uncomplicated and easy to operate and use. Anyone can use it and deal with it.
• Showing the identity of the target on the device screen, accurate discrimination of gold, precious and non-precious metal, with the feature of setting a mask to ignore targets.
• Advanced Double-D search coils with great focus and performance, able to isolate ambient effects while maintaining optimal results.
• Great speed to provide the results to the user with an integrated and comprehensive data about the target and the point centre.
• Automatic Tuning System (ATS) Special invention and new, registered in favor of MWF GROUP, this system provides accurate results and certain in all types of soils and terrain, because the system recognizes the soil automatically, grants the search process automatic tuning commensurate with the type of soil and properties of soil , With the abolition of any overlaps radiation resulting by the rocky and mountainous territory effect , which may affect a lot of other detectors, but the this smart system, can sorting and analysis and provide the necessary levels which relates of frequency signal, voltage and wavelength of the signal which gives results free of any errors.
• The user interface is modern and comfortable, showing all device functions, settings and search results.
• Full control over all device functions, settings and search criteria, giving you accurate adaptation to all surrounding conditions.
• TFT color screen 3.5-inch HD, gives the user the clear vision by night and day.
• Control the level of screen brightness feature, which gives you adequate lighting for day or night, and to reduce the level of lighting to save energy as well.
• Volume control feature.
• Multi-languages, Supported with 6 international languages.
• Built-in long-life rechargeable lithium-ion batteries, enabling the user to work for 10 continuous working hours.
• Safe battery charging system that provides fast charging while maintaining long battery life.
• High quality and accurately performance, manufacturing this product by best elastomers, electronic components and circuits with international standards.
• The ergonomic design and streamlined shape gives you the power to search and navigate with lightweight and ease of use, which play a big role in quick and uncomplicated results.
• Supported this device with simply control panel, works with buttons interface, enables the user to be controlling and setting the device to search easily.
• Great speed to provide the results to the user with an integrated and comprehensive data about the target and the point centre.
Experience the German QZ80 gold detector to distinguish gold, completely isolate iron, and discover the smallest pieces of raw gold

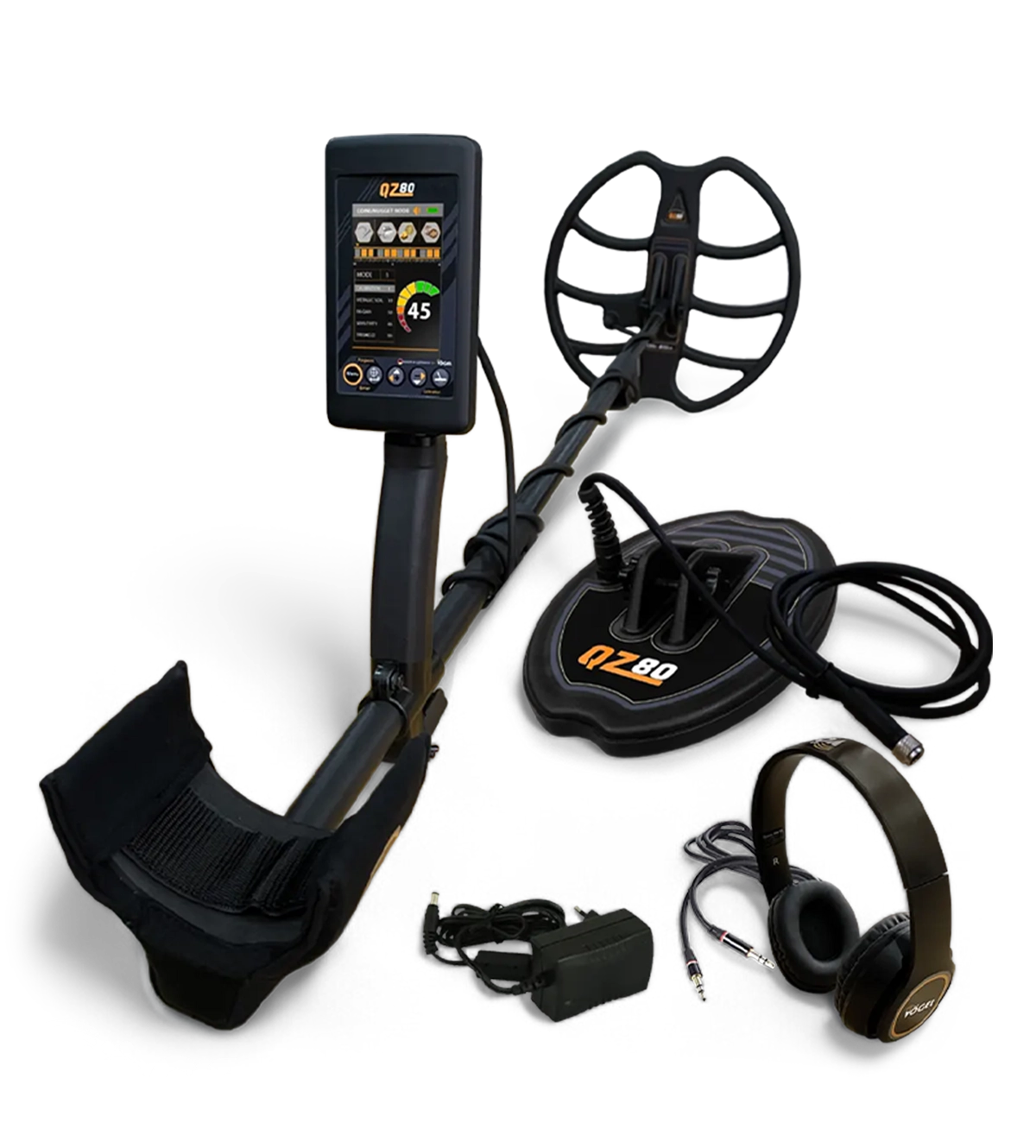

Accessories inside the shipping box
Systems
Ultra-Fine Frequency (UAF) Detection System
• QZ80 is a new gold and metal detector, an amazing detector to detecting and discrimination between targets and identifying a tiny pieces.
• Our New Technology(U-VLF) Ultra-Accurate Frequency (UAF) compatible with the very low Frequency system (VLF), is a modern scientific method to detecting gold and metal with high accuracy with the feature of Discrimination between targets and isolating unwanted targets (Mask feature) With advanced properties in this system, which is identification of gold only to search for it without other metal.
• This detector features an auto-tuning calibration system that allows the user a quick adjust of the device with the soil and obtain optimal results.
• The feature of cancelling the iron metal completely, as the device stops and ignores to giving any results of iron.
• The search sensitivity level control feature, which corresponds to the environment of search to get best results.
• The feature of controlling the gain level of the receiving coil. This feature is only available in detectors with accurate results. This feature allows finding very small pieces with ease.
• This device contains 4 different detection modes, and each mode has unique characteristics.
• General Search Mode: This mode is characterized by the ultra-focused precise search feature, to detect targets with high accuracy, Accurate determination of the target’s location and the distinction between it,
• Treasure Search Mode: This system provides prospectors with immediate results to distinguish between targets and accurately determine their targets, as it contains many features that provide integrated information about the identity and type of the target with a graphical analysis window that shows the signal intensity and target size as well, in addition to the digital frequency value.
• Nuggets and coins search Mode: a system specialized to detecting nuggets of raw gold, coins and teny small targets, Allows the user to fine-tune all search characteristics, high concentration on raw gold nuggets with 0% noise, As this system has great capabilities to deal with all ground factors and magnetic anomalies, the interface of the system shows the true value of the target’s identity with the feature of isolating unwanted targets , and the feature of specifying the search for gold only without other metals,
• Depth Determination Mode: a system specialized in determining the approximate depth of the target, which helps prospectors to determine the depth of the target before drilling begins.
Technical Specifications
Technical Specifications of the QZ 80 device
Search system: | Our Technology (U-VLF) Ultra-Accurate Frequency (UAF) combined with VLF technology. |
---|---|
Search principle: | Measuring and processing digital data, by sending and receiving ultra-accurate waves and frequencies, and analyzing them to detect and discrimination between metal. |
Operating processor: | MICROCONTROLLER for digital signal processing |
Detection operating frequency: | Multi-frequency: 14.5 kHz and 20 kHz |
Power: | 3 cells Li-ion 3.7 volts, 3000 mA, power output 7.3 volts. |
Power consumption | Maximum consumption of 300 mA. |
Battery working hours: | 10 Work hours |
Pinpoint Mode | Yes |
charger: | 12-volt 2 amp / Charging Time 2 hours |
Display type: | TFT Color Screen 5″ |
Specialized in detecting: | Detecting gold and metal |
Differentiating between targets: | Yes |
Target selection system: | Yes, can choose the target type before start search from the list of targets |
Ground Balance | fully automatic |
Sensitivity Control | Yes, adjustable through multiple levels. |
search results: | Multiple audio, digital and graphic coordinates |
Iron insulation | Yes, providing complete iron isolation to ignore iron targets. |
Humidity: | It can be stored and work in the degree rate of air humidity of level 90%. |
Multilanguage: | Yes, it contains 6 international languages |
Operating temperature: | From -15°C to 60°C |
Storage temperature: | From -15° C to 40° C |
Weight: | Compound: about 1.5 kg – disjointed in the bag with full accessories: 5 kg |
Dimensions: | 14.1x8x4.6 cm for main unit |
Bag dimensions: | 40X33X17 cm |
