Description

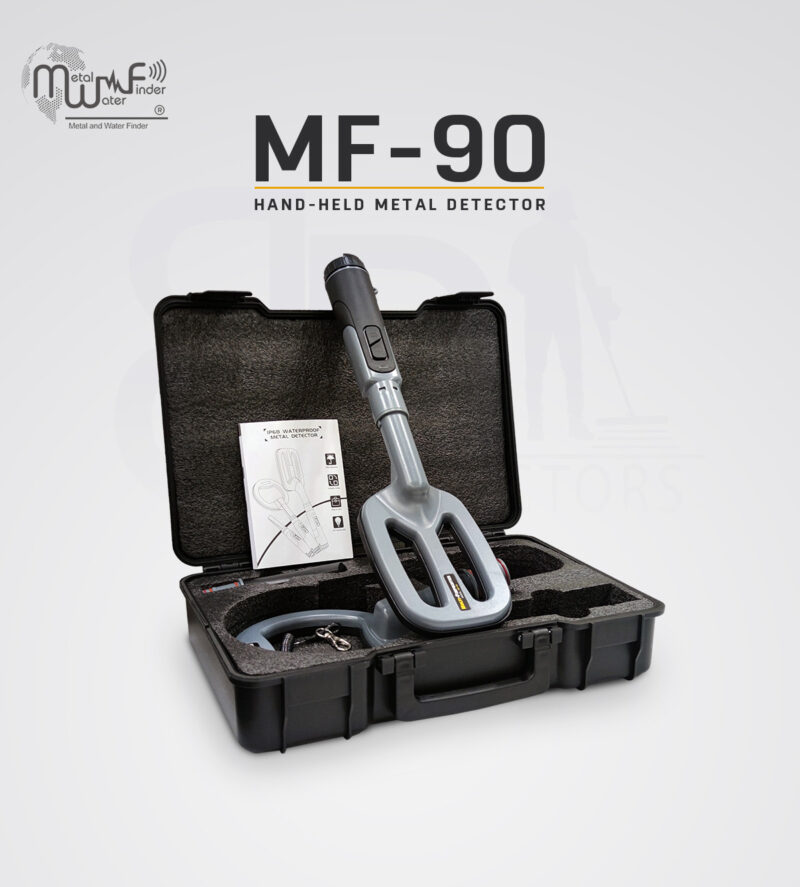

MF90 device
• The first device of its kind in the world, a metal detector and locator with high sensitivity and perfect quality.
• The MF-90 uses PI pulse induction technology, allowing you to detect metals in water and in all types of soils.
• Streamlined and distinctive shape, small in size, light in weight and easy to use.

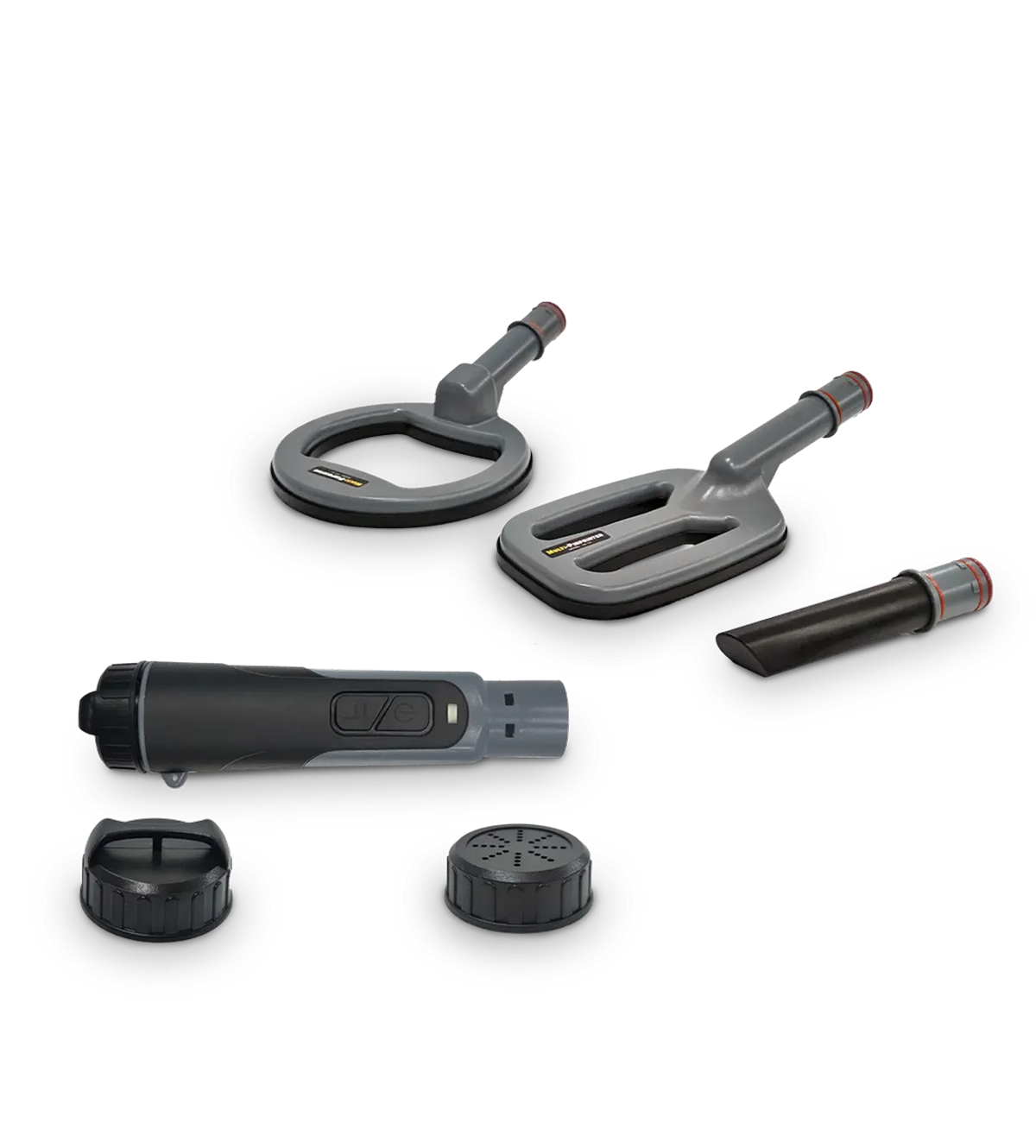

• It contains three search coils of different sizes that help you reach the narrowest and most difficult rugged areas.
• It contains a coil with a slanted edge that allows you to detect in very narrow and rugged areas.
• The MF-90 has a standing of IP68 for waterproofing, where you can detect metals by diving at a depth of up to 50m underwater.
• The device is equipped with a USB Type C port, which enables you to use the power bank at any time.
• High capacity and low energy consumption, you can work for 10 days.
• It only takes two hours to charge the battery.
• The device contains sound and vibration alarm systems that interact with the size and proximity of the target.
• Light in weight, 370 grams combined and 1360 grams fully in the bag.
• The ability to reset and calibrate with a quick response and with one click.
• Fast and immediate results, no need for analysis, waiting or follow-up.
• The ATS system automatically adjusts to all types of terrain, including rocky, mountainous, sandy and muddy soils.
• The device contains a flash light to work in poor or non-existent lighting conditions.
• The advanced microprocessor circuitry allows the MF-90 to work with the maximum possible sensitivity to detect metals.
• This device is made of the best plastics, electronic components and circuits with international standards.
• High precision and quality in manufacturing and performance, with a non-slip handle.
MF 90 Applications
• The small size of the device helps in accessing search places that cannot be reached through another device.
• Target detection speed and finding small metals with high accuracy
• Searching in narrow interior areas such as walls and ceilings
• It acts as a pointer to locate metal pipes, channels, rebar, etc.
• You can move around and travel with it wherever you want
Accessories inside the shipping box
Technical Specifications
Technical specifications of the MF 90
| Detection system: | PI pulse induction search system |
| Detection principle: | A pulse of current is sent and received, processed (repeatedly) through a coil in the search head to detect metal. |
| Operating processor: | MICROCONTROLLER |
| The operating frequency | 18.2Khz |
| Alarm type: | Interactive audible, vibrating alarms |
| Power: | 5-volt cell |
| Power consumption | The maximum consumption is 200mA |
| Battery working hours: | 90 actual working hours |
| Specialized in detecting: | Metals of all kinds |
| Search distance: | Spot detection depends on the size of the target |
| Operating temperature: | From -15°C to 55°C |
| Storage temperature: | From – 15 °C to 50 °C |
| Humidity: | It can be stored and operated at an average humidity level of 90%. |
| Weight: | Compound: 180 g |
| Dimensions: | 24cm x 5cm |
