Description

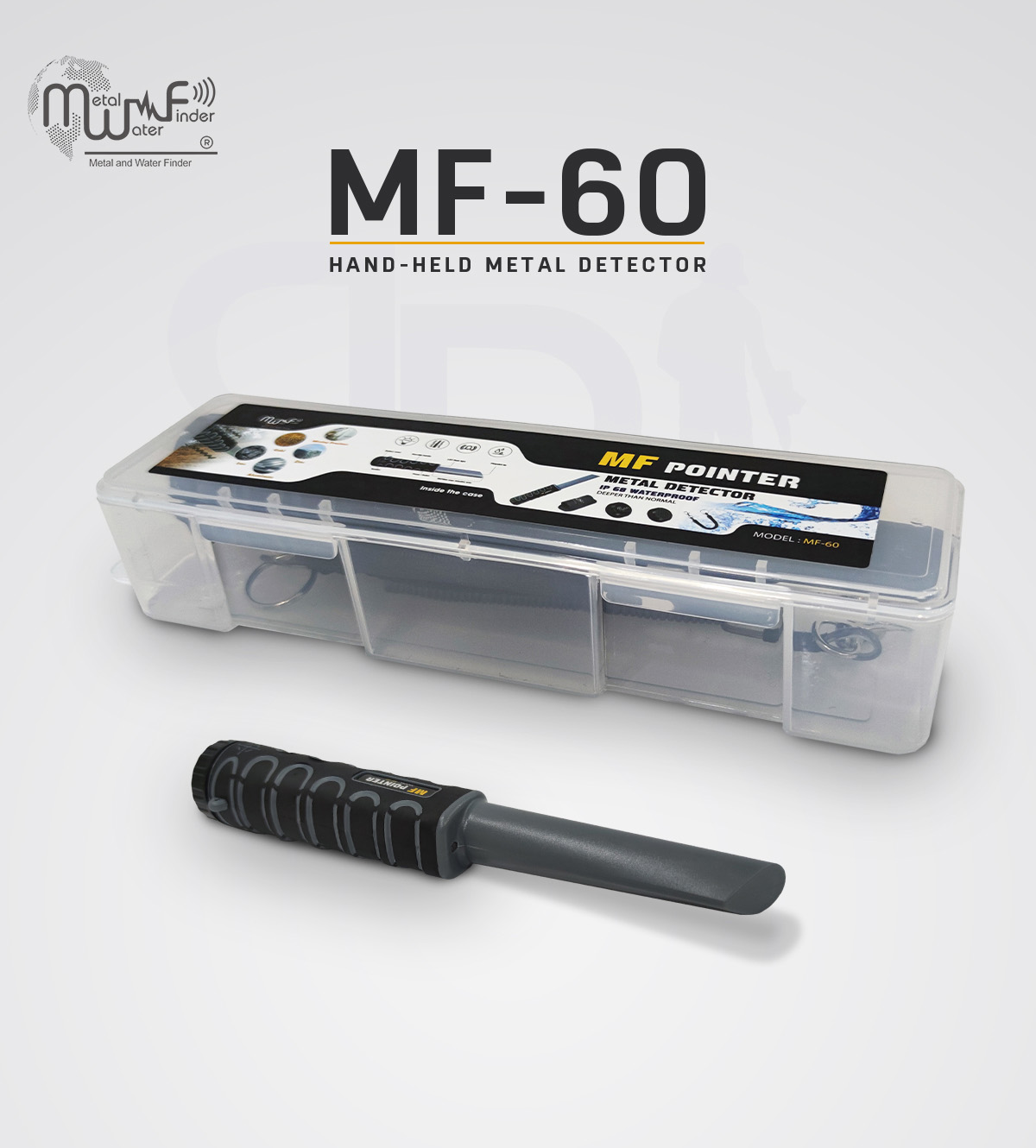

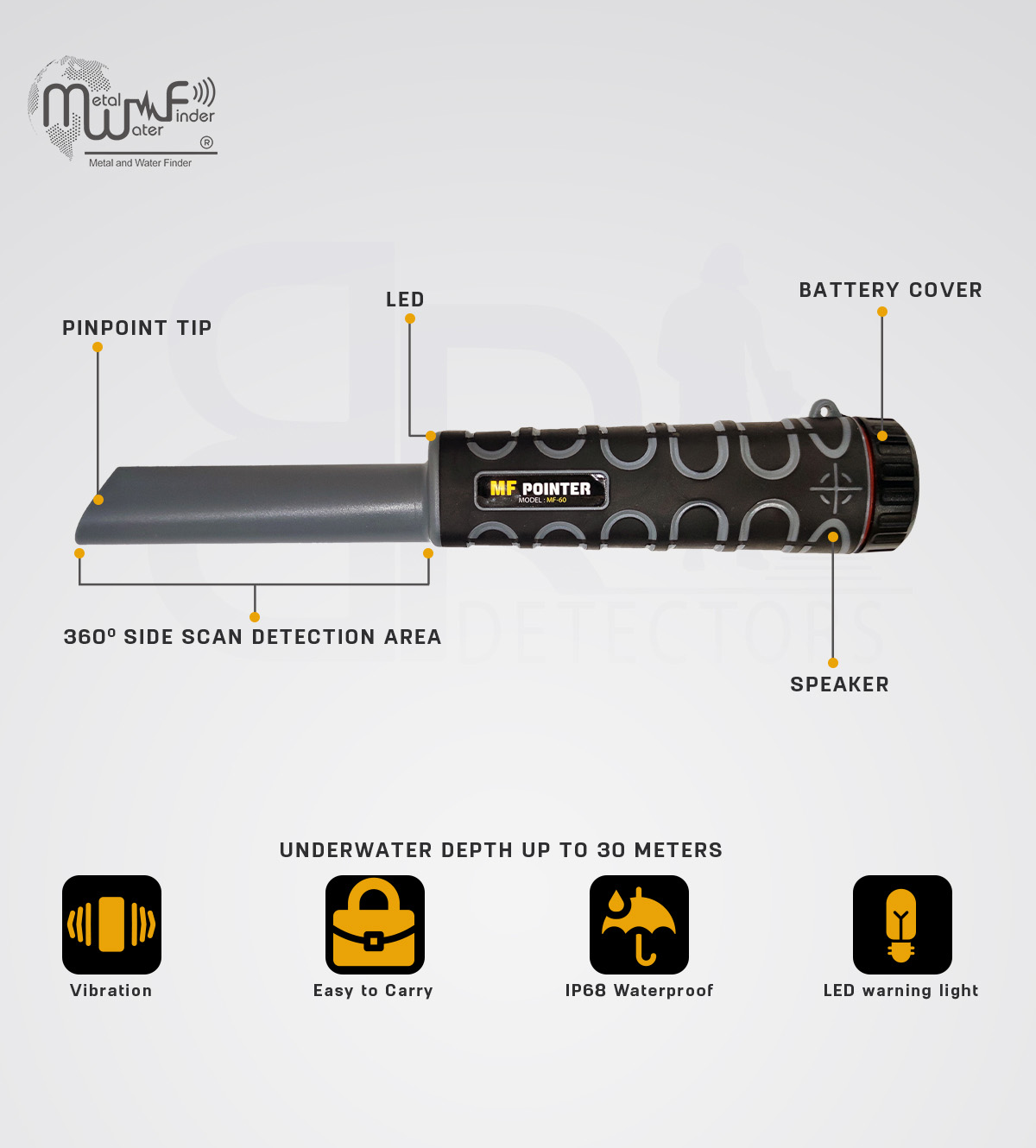

MF 60 device
• Streamlined and distinctive shape, small in size, light in weight and easy to use.
• It has a slanted edge that allows you to detect in very narrow and rugged areas.
• The mf-60 has an IP66 waterproof rating, where you can detect metals at a depth of up to 30 m underwater.
• The device is equipped with a 9-volt battery that allows you to use it for more than 90 continuous working hours.
• The device contains sound and vibration alarms that interact with the size and proximity of the target.
• Light weight only 180 grams.
• The ability to reset and calibrate with a quick response and with one click.
• Fast and immediate results, no need for analysis, waiting or follow-up.
• System (ATS) automatic tuning with all types of terrain and rocky, mountainous, sandy and muddy soils.
• The device contains a flash LED light to work in poor or non-light conditions.
• The advanced and accurate signal transmission and reception system (PI).
• The advanced microprocessor circuitry allows the MF 60 to operate with the highest possible sensitivity to metals.
• This device is made of the best plastics, electronic components and circuits with international standards.
• Accuracy and high quality in manufacturing and performance.
MF 60 Applications
• Searching for lost items in the garden of the house
• Identify small pieces while searching for gold nuggets
• Determine the small pieces during excavation to avoid the loss of small pieces and cash
• The small size of the device helps in accessing search places that cannot be reached through another device.
• Target detection speed and finding small metals with high accuracy
• Searching in narrow interior areas such as walls and ceilings
• It acts as a pointer to locate metal pipes, channels, rebar, etc.

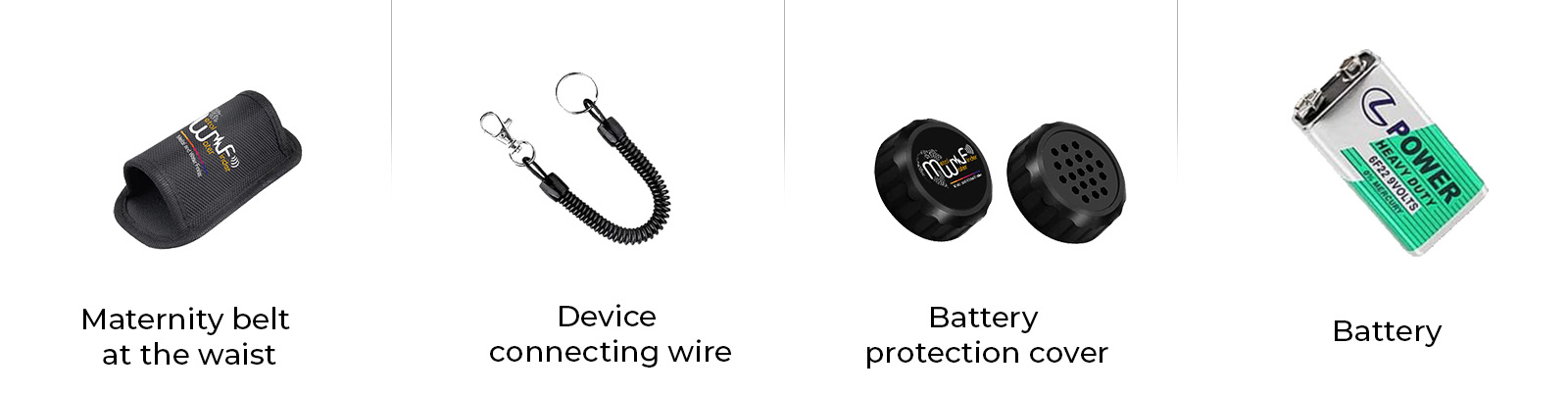

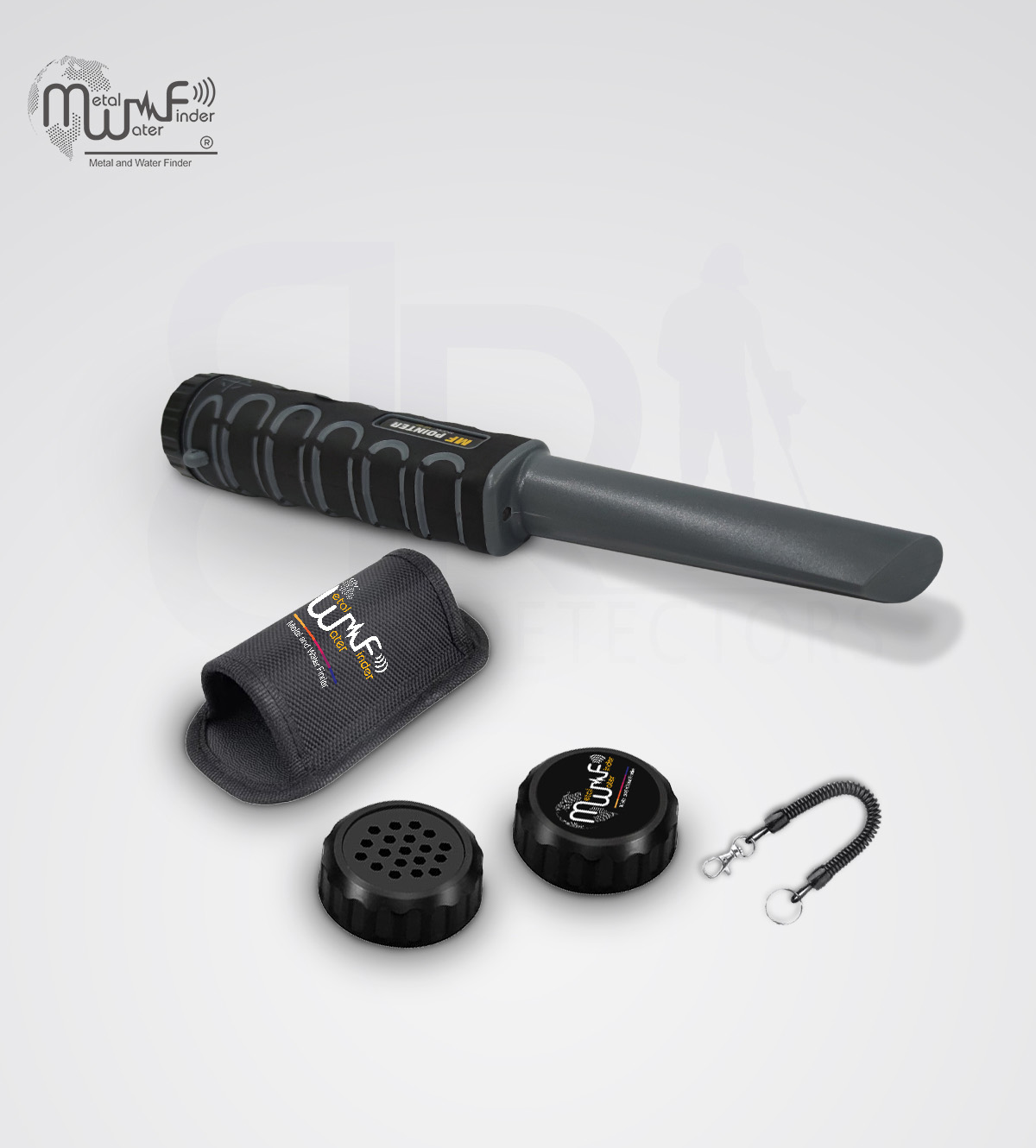

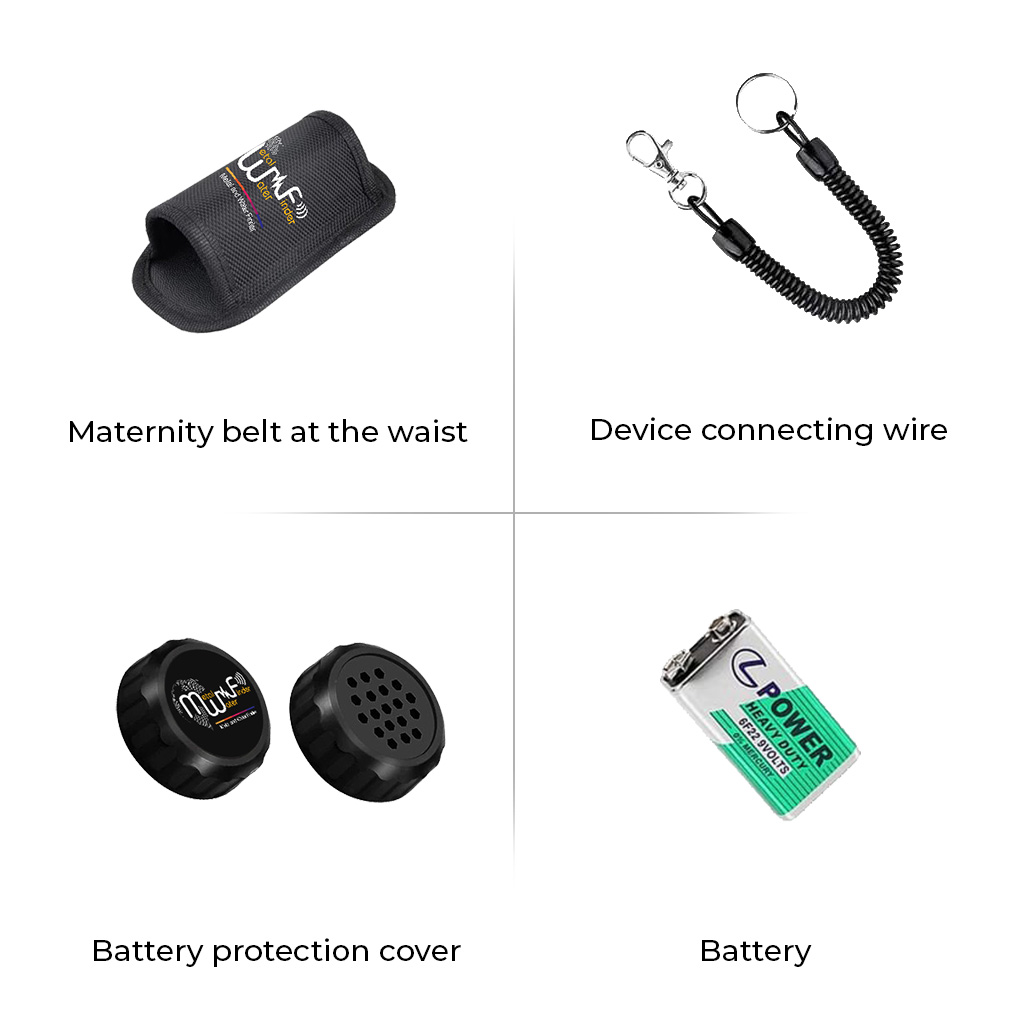

Accessories inside the shipping box
Technical Specifications
Technical specifications of the MF-60
| Detection system: | PI pulse induction search system |
| Detection principle: | A pulse of current is sent and received, processed (repeatedly) through a coil in the search head to detect metal. |
| Operation processor: | MICROCONTROLLER |
| The operating frequency | 18.2KHz |
| Alarm type: | Interactive audible, vibrating alarms |
| Power: | 9 volt cell |
| Power consumption | The maximum consumption is 200mA |
| Battery working hours: | 90 actual working hours |
| Specialized in detecting: | Metals of all kinds |
| Search distance: | Spot detection depends on the size of the target |
| Operating temperature: | From -15°C to 55°C |
| Storage temperature: | From – 15 °C to 50 °C |
| Humidity: | It can be stored and operated at an average humidity level of 90%. |
| Weight: | Compound: 180 g |
| Dimensions: | 24cm x 5cm |
